General Elevator Landing Door Lock Safety Device Triangle Lock For
Lift Spare Parts
Aspects of suitability
Elevator brand and model matching: different brands and models of elevators, the hall door triangle
lock specifications and sizes may be different. For example, the
hall door triangle lock of the OTIS elevator may be different from
that of the KONE elevator in terms of the lock cylinder structure,
the lock body size, etc. At the time of purchase, it is necessary
to accurately understand the brand, model and year of manufacture
of the elevator to ensure that the triangle lock is fully adapted
to the elevator. This information can be obtained by viewing the
elevator's product nameplate, consulting the elevator manufacturer,
or consulting the elevator's technical documentation.
Type and size adaptation of doors: elevator hall doors have different types such as middle-divided
double doors and side-opened double doors, and the sizes of doors
are also different. The installation position and structure of the
triangle lock should match the type and size of the hall door. For
example, a large hall door may require a triangular lock with a
long lock arm to ensure effective control of the opening and
closing of the door. At the same time, for different door opening
methods (such as manual or automatic), the mechanical transmission
part of the triangle lock also needs to be adapted.
Product description
| Model Number | CZKS07 |
| Used For | All Brand Elevator Car Door |
| MOQ | ≥1PCS,Support regular pricetake sample first |
| Delivery | DHL,TNT,FedEx,Air,Sea, |

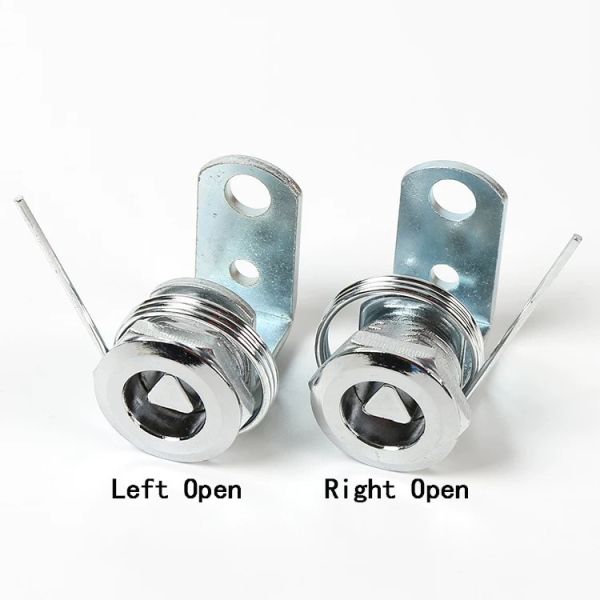

| Optional | Left Open Or Right Open |
| The elevator cartriangle lock is an elevator safetydevice,which is
mainly used to open the elevator car door in an emergency. |

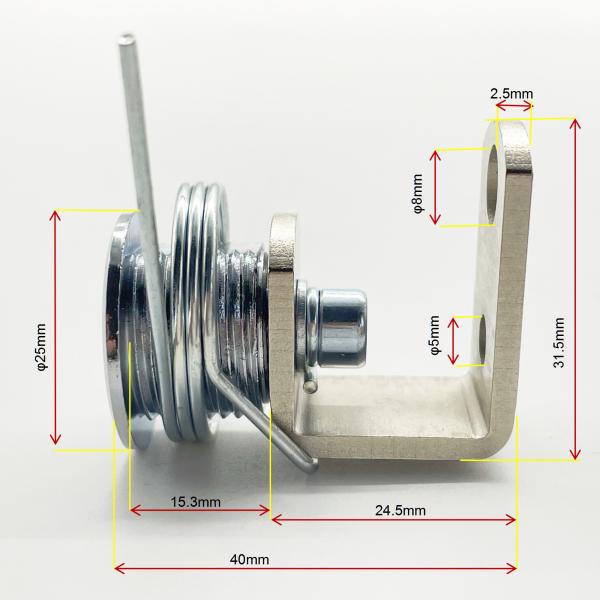

Dimension
Note: physical manual measurement, there will be some error, for
reference only, details please consult
Shanghai Zan Feng (CZANF) Technology Co., Ltd provides the
customized service and solutions for elevator electrical system and specializes in elevator components. The
product scope ranges from contactless button, push button, COP, LOP , hall lantern , segment ,dot matrix , LCD
and TFT displays , hoistway fixture , intercom system , traveling cables to other spare parts of
elevator.
We pursue the sustainable success with customers. When it comes to
Elevator components, we are about as materials as they come. That’s
because we are in the elevator components many years with very wide
supply system. We are more committed to the intelligent development
of elevators in the near future and becoming the preferred partner
for smart and sustainable city development.
